NKD Custom-made

Air flow rate 500 – 150,000 m3/h

Low total cost of ownership

Modular layout

Insulated and free of thermal bridges

Simple (dis)assembly

For more than 15 years the most flexible air handling unit with heat recovery

The NKD Maatwerk is an energy-efficient air handling unit with heat recovery, which allows you to quickly and easily create a healthy and comfortable indoor climate for any desired space.

Air volume from 500 – 150,000 m3/h

Discover the versatile NKD Maatwerk with air volumes ranging from 500 to 150,000 m³/h. The NKD meets the requirements of ERP 2023, has a long service life and offers limitless possibilities in terms of design, shape, cooling, heating, control technology, accessories and additional components.

Low total cost of ownership (TCO)

The NKD Bespoke is known for its cost efficiency over its entire service life. This includes not only purchase and installation costs, but also energy, maintenance, and disposal costs. Thanks to our optimized dimensions, air velocity is low and costs are kept to a minimum, allowing you to benefit from a low TCO. Also, the combination of a low air velocity with a large filter surface area ensures longer filter life and therefore lower maintenance costs.

Thermal bridge-free and insulated

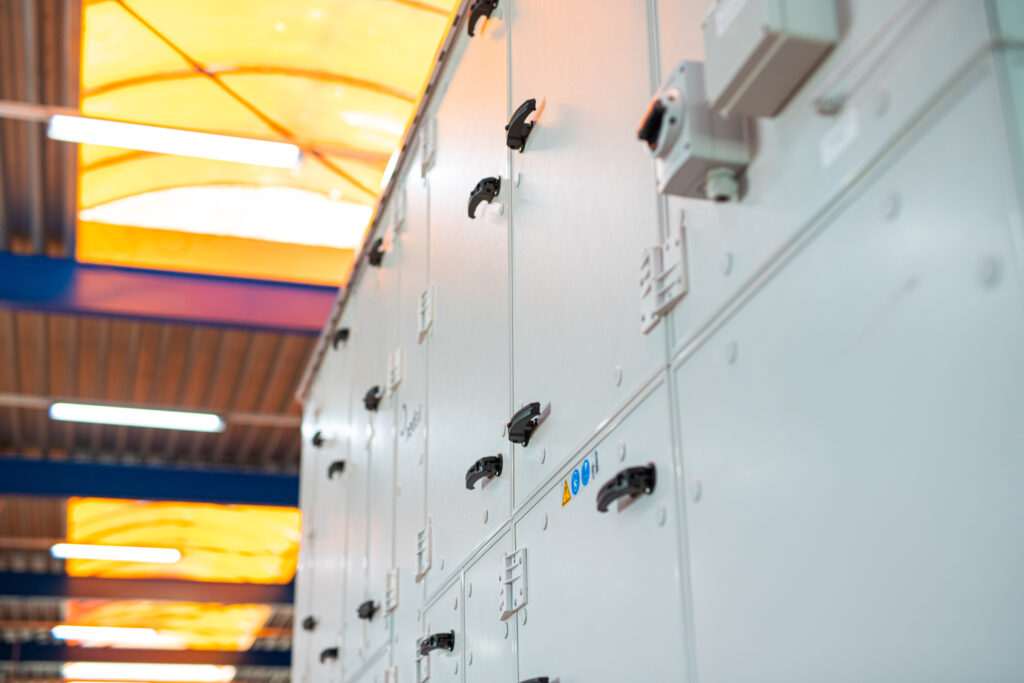

The NKD Custom cabinets are constructed entirely thermal bridge-free from 44 mm thick panels with a free choice of material between sendzimir-galvanized steel with a color plastic coating or sandwich panels with stainless steel cladding. The panels are provided with moisture-resistant, environmentally friendly and fire-resistant insulation and contribute to high thermal and acoustic insulation. Due to the very solid and stable construction of the panels, a cabinet frame is no longer necessary, resulting in a completely airtight air handling unit. Both internally and externally, the cabinet is completely flat, ensuring a hygienic cabinet design.

Simple (dis)assembly

The desired air handling unit is assembled by our expert staff in Kampen. Once delivered to you, you can easily connect the cabinet to the power supply and put it into operation.

If you would like to know more about the possibilities, please contact our sales department for a customized solution.
